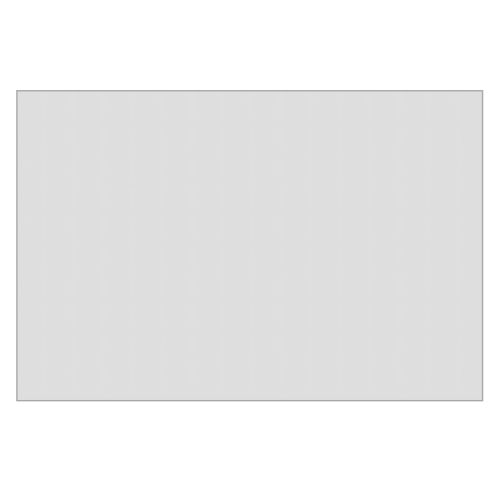

Visionchart LX7 EDGE SANA Acoustic Pinboard 900 x 600mm
No reviews
Save $-438.20
$438.20
| /
The Visionchart LX7 Pinboard SANA combines contemporary style with acoustic functionality, making it an ideal choice for offices, classrooms, and meeting rooms. Designed to absorb up to 70% of reverberated sound, it delivers quieter, more comfortable spaces while providing a sleek, professional display surface.
Constructed from 60% recycled polyester PET, this eco-friendly board features an LX7 aluminium frame with a slim 2mm profile and 20mm depth. It mounts easily in portrait or landscape orientation using a rear-mounted split batten system, allowing for seamless side-by-side installations.
Key Features
Brand
Visionchart
Product code
LX7-9060-SA
Size
900 x 600mm
Material
Acoustic panel made from 60% recycled polyester PET
Acoustic performance
Reduces reverberated sound by up to 70%
Frame type
LX7 Slim Edge aluminium frame
Frame dimensions
2mm thickness, 20mm wall depth
Mounting orientation
Portrait or landscape
Mounting method
Rear-mounted split batten (kit included)
Custom sizes
Available up to 2400x1200mm (charged at next size bracket)
Colour options
Shadow, Frost, Moonlight, Mushroom
Suitable for
Offices, meeting rooms, classrooms, and acoustic-focused design projects
Highlights
Acoustic clarity: Absorbs up to 70% of reverberated sound for quieter, more comfortable spaces
Sustainable design: Made from 60% recycled polyester PET for an eco-friendly solution
Slim edge style: LX7 aluminium frame with 2mm profile and 20mm depth for a clean architectural look
Mounting versatility: Install in portrait or landscape orientation using rear-mounted split batten system
Seamless integration: Designed for side-by-side wall installations to create continuous acoustic panels
Colour palette: Available in Shadow, Frost, Moonlight, and Mushroom
What's included
Visionchart LX7 EDGE SANA Pinboard
Rear-mounted split batten mounting kit
Frequently asked questions
What material is the SANA pinboard made from?
It is constructed from an acoustic panel made with 60% recycled polyester PET.
How much sound does the pinboard absorb?
The panel absorbs up to 70% of reverberated sound to help reduce background noise.
Can this board be mounted in different orientations?
Yes, it can be installed in either portrait or landscape orientation using the included rear-mounted split batten system.
What are the frame dimensions?
The LX7 Slim Edge aluminium frame features a 2mm profile thickness and a 20mm wall depth.
